VS-IP635W

Feature
Specification
Documents

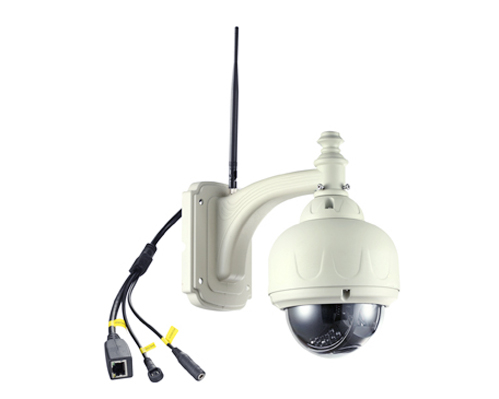

Outdoor speed dome camera
M-JPEG compression,640X480 resolution
Support Wi-Fi 802.11 b/g/n
4-9 mm lens,15-20 meters night vision withФ5 22 IR LED
With PTZ function,Pan: 355 degree,tilt 90 degree.Adjustable rotating speed (15-70 degree /sec.)
With IR cut filter, can show better night vision

Language	English,Simplified Chinese,Traditional Chinese
Appearance	Cover	Gray
	Size(mm)	120 x 120 x 190mm (L x W x H)
	IR cut filter	IR-CUT can restore the true color
	IR LED	15-20 meters night vision withФ522IR LED
High speed CPU	Winbond	ARM 7
Sensor	Sensor	1/5” color CMOS sensor
	Resolution	640X480 (0.3 megapixel)
	Lens	f: 3.6mm
	Minimum Illumination	0.1Lux
PTZ	ectric machine control	Intelligent IC control
	PT angle	Pan:355°,tilt 90°
	Speed	15-70 degree/sec. adjustable
Video	Compression	MJPEG
	Frame	15fps(VGA),30 fps(QVGA)
	Resolution	640 x 480(VGA), 320 x 240(QVGA) ,160 x 120(QQVGA)
	Reverse	Horizontal / vertical
	Refresh rate	50 Hz,60Hz , outdoor
	Video parameter	Brightness,contrast
Communication	Ethernet	RJ-45 port 10/100Mbps
	Protocol	HTTP,FTP,TCP/IP,UDP,SMTP,ARP,ICMP,BOOTP,RARP,DHCP, PPPoE,DDNS, UPnP,GPRS
	Wireless standard	IEEE 802.11b/g/n
	Code rate	802.11b: 11Mbps( max.) 802.11g: 54Mbps(max.) 802.11n: 600Mbps(max.)
	Wireless security	WEP/WPA/WPA2 encryption
	Alarm	1ch alarm inout,1ch alarm output
	Phone monitoring	Support Java 2.0 platform,IOS,Android,Blackberry
	Email	Gmail、hotmail、yahoomail
	Sharing function	msn
Power adapter	Current	DC 5V/2.0A
Power adapter	Consumption	5 .5 W ( max.)
Environment	.Temperature	0° ~ 55°C (32°F ~ 131°F)
	Humidity	20% ~ 85% no frozen
	Storage temperature	-10°C ~ 60° (14°F ~ 140°F)
	Storage humidity	0% ~ 90% no frozen
Browser	IE 9.0 firefox ,Google,Safari standard browsers,VLC
Operation System	Compatible system	Windows XP、Windows2003、Windows 7、Windows Vista、IOS, Macbook, Linux
Certification	CCC CE FCC ROHS ISO
Accessories	Power X 1
	Wi-Fi Antenna
	CD X 1 (PDF manual,multi-channel surveillance software,mobile phone software,search tool)
