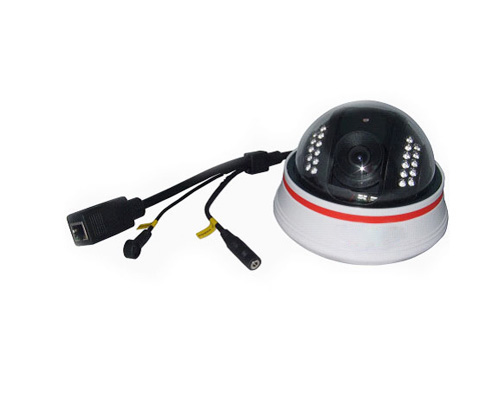

VS-IP611IW

Feature
Specification
Documents

P2P(Plug and play IP camera)
Two languages( English and Simplified Chinese)
Wi-Fi IEEE802.11 b/g/n wireless connection
With night vision
M-JPEG compression format.recording AVI file,can auto recover by IE recording
With VGA and QVGA resolution
Support IOS ,Android operation system
Compatible windows system,Macbook,Linux
Support FTP,Email upload function
With motion detection function
9ch display at the same time from IE browser15.Provide free centralized end multi-picture viewing software ,IOS software, Android Software.
Provide permanent ID number,directly enter the ID to view.

Language	English,Simplified Chinese
Appearance	Color		White dome
	Size（mm）		12712791
	IR LED		10-15 meters with 22 IR LED
High speed CPU	ARM		ARM 7
Sensor	Sensor		1/”4 Color CMOS sensor
	Resolution		640X480(0.3 megapixel)
	Lens		f: 3.6mm
	Minimum Illumination		0.1Lux
Video	Compression		MJPEG
	Display		9 CH
	Frame		15fps/VGA,30fps/QVGA
	Resolution		640 x 480(VGA), 320 x 240(QVGA)
	Reverse		Horizontal / Vertical
	Refresh Rate		50Hz, 60Hz
	Video parameter		Brightness,contrast
Communication	Ethernet		RJ-45 port 10/100Mbps
	Protocol		HTTP,FTP,TCP/IP,UDP,SMTP,ARP,ICMP,BOOTP,RARP,DHCP, PPPoE,DDNS, UPnP,GPRS
	Wireless standard		IEEE 802.11b/g/n
	Code rate		802.11b: 11Mbps (Max.) 802.11g: 54Mbps (Max). 802.11n: 600Mbps( Max.)
	Wireless security		WEP/WPA/WPA2 encryption
	Phone monitoring		Support IOS,android mobile phone system
	Email		Gmail、eyou、yahoomail、QQ、163、sina and so on
Power adapter	Current		DC 5V/2.0A
	Consumption		5 .5 W ( Max.)
Environment	Temperature		0° ~ 55°C (32°F ~ 131°F)
	Humidity		20% ~ 85% no frozen
	Storage temperature		-10°C ~ 60° (14°F ~ 140°F)
	Storage humidity		0% ~ 90% no frozen
Operation System	Compatible system	Windows XP、Windows2003、Windows 7、Windows Vista、IOS
Certification	CCC CE FCC ROHS ISO
Accessories	Power adapter X 1
	Screw X 1 bag
	Ethernet cable X 1
	CD X 1 (include user manual PDF,Multi-channel surveillance software,Mobile phone browser,Searching tool )
