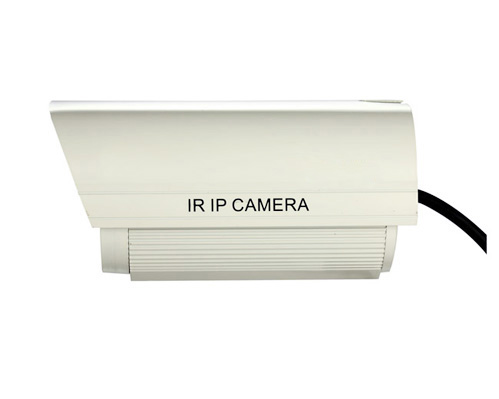

H.264 compression megapixel outdoor waterproof wired IP camera.
Megapixel ,resolution HD:1280*720P,VGA:640*480,CIF:320*240,optional.
1/4 CMOS sensor.
With IR Led,night vision,distance 50 meters.
support SD card ,max 64GB.
support Motion detection.
Model |
VS-IP905 |
HD MEGA |
OV single board with Array IR |
Main chipset |
HISILICON Hi3507 |
Operation system |
Embedded Linux |
Video Codec |
H.264 main profile level 3 |
Audio Codec |
G.726/G.711 |
Image Sensor |
1/4-inch OV 2.0 megapixel Progressive Scan CMOS Sensor |
Video Parameter |
Brightness,contrast,satration can be adjusted |
CMOS Performance |
Automatic white balance(AWB),automatic gain control(AGC),automatic backlight compensation(ABLC) |
WDR Image Function |
NO |
Mini.Illumination |
1 Lux （IR off） 0 Lux（IR on） |
IR Night Vision |
50 Meters |
Resolution |
Main Stream:：1280x720 |
| Sub Stream: CIF:320*240,VGA:640x480 Optional |
Frame Rate |
Main Stream:1~30fps |
| Sub Stream:1~30fps |
Bit Rate |
32Kbits/S～4Mbits/S Adjustable |
Audio Input |
NO |
Audio Output |
NO |
Alarm I/O |
NO |
Motion detection |
4 respective regions |
Control interface |
NO |
SD card backup |
Support SD card local Storage，Video Storage and snapshot,Maximum 64G |
network protocol |
TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP and so on |
network interface |
10Base-T/100Base-TX Ethernet interface； |
Wifi |
NO |
Input power |
DC12V 2A |
Consumption |
10W |
Working tempreture |
-10 ~ +55 ℃ |
Working Humidity |
10 ~ 85%RH |
Size |
185mm(L)*105mm(W)*87mm(H) |
Weight |
0.89kg |
LENS |
6mm |
|
