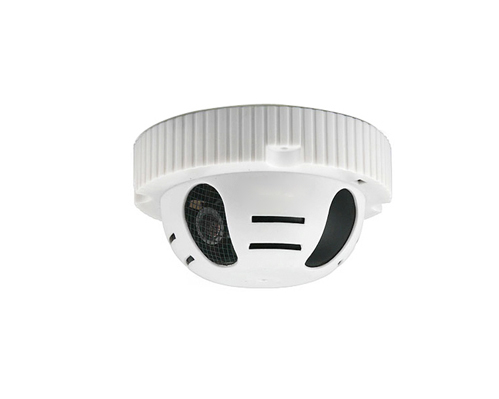

Smoke Detector Camera
SONY / SHARP Color CCD
Easy For Installation
Built-in 3.6 mm Board Lens
|
Model Name
|
VS-HSDS-38
|
VS-HSDS-36
|
VS-HSDS-32
|
VS-HSDS-82
|
|
Image Device
|
1/3 SONY
|
1/3 SHARP
|
1/3 SONY
|
1/4 SHARP
|
|
Resolution
|
600 TVL
|
500 TVL
|
420 TVL
|
420 TVL
|
|
Picture Elements
|
PAL:795(H)×596(V)
|
PAL:752(H)×582(V);
|
PAL:500(H)×582(V); NTSC:510(H)×492(V)
|
|
NTSC:811(H)×508(V)
|
NTSC:768(H)×494(V)
|
|
Min. Illumination
|
0.1 Lux /F1.2
|
0.8 Lux /F2.0
|
1.0 Lux /F2.0
|
|
TV System
|
PAL/NTSC
|
|
Lens Furnished
|
3.6 mm Board Lens (Optional 4mm or 6mm Board Lens)
|
|
S/N Ratio
|
More than 48dB
|
|
Electronic Shutter
|
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
|
|
Gamma
|
0.45
|
|
White Balance
|
Auto
|
|
Gain Control
|
Auto
|
|
Sync. System
|
Internal
|
|
Video Output
|
1 Vp-p / 75 Ohms
|
|
Power Supply
|
DC12V±10%
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Dimension
|
¢110 x 50 mm
|
|
Weight
|
300g
|
|
